Short Hinge Roller Lever Horizontal Limit Switch
-
Design Flexibility
-
Reliable Action
-
Enhanced Life
Product Description
With a mechanical life of up to 10 million times, it features a more robust casing, which enables it to have greater durability and the ability to withstand harsh environments. It is applicable to some heavy equipment in which ordinary switches cannot operate. The hinged roller lever horizontal switch combines the advantages of levers and rollers and can be applied in more occasions.
Dimensions and Operating Characteristics
General Technical Data
| Ampere rating | 10 A, 250 VAC |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Contact resistance | 15 mΩ max. (initial value for the built-in switch when tested alone) |
| Dielectric strength | Between contacts of same polarity
1,000 VAC, 50/60 Hz for 1 min |
| Between current-carrying metal parts and ground, and between each terminal and non-current-carrying metal parts
2,000 VAC, 50/60 Hz for 1 min |
|
| Vibration resistance for malfunction | 10 to 55 Hz, 1.5 mm double amplitude (malfunction: 1 ms max.) |
| Mechanical life | 10,000,000 operations min. (50 operations/min) |
| Electrical life | 200,000 operations min. (under the rated resistance load, 20 operations/min) |
| Degree of protection | General-purpose: IP64 |
Application
Renew’s horizontal limit switches play a key role in ensuring the safety, accuracy and reliability of various equipment in different fields. By monitoring the position and status of equipment, these switches can provide timely feedback and prevent potential failures or accidents, thereby protecting the safety of equipment and operators. Here are some popular or potential applications.

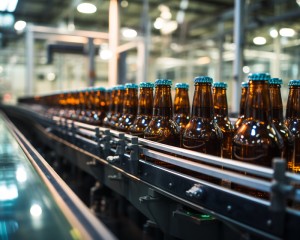

Warehouse logistics and processes
Employed on conveyor systems to indicate position for system controls, count items passing by, and can also provide required emergency stop signaling for personal safety protection.
